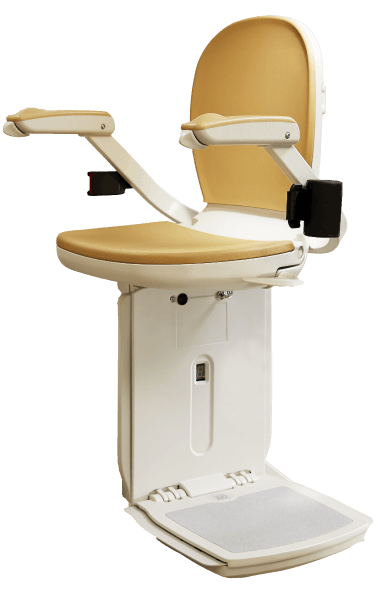

ACORN 180

CURVED STAIRLIFT

A curved stairlift takes its name from the curved stairlift rail which it runs on. The name can be misleading because it suggests it’s only for gently curving stairs. In fact, a ‘curved stairlift’ is for any non-straight stairs which have turns, angles, bends or curves anywhere along their length. It’s the rail which must curve around the corners for a smooth ride. Each curved stairlift rail must be individually built to precisely follow the unique contours of the stairs it’s installed on. That’s why curved stairlifts cost more and installation takes a little longer.

Request Survey For Price
acorn 180 curved

A VERSATILE SOLUTION

The Acorn 180 Curved Stairlift is an extremely versatile and adaptable solution for more complex stairs. Customers needing a curved stairlift might have to wait several weeks for their one-off curved rail to manufactured in a factory then shipped to their home… but not with Acorn. Its patented FastTrack® system has slashed waiting times for curved stairlifts. It uses a parts library of ready-made interlocking rail sections which can be assembled in the customer’s home in just a few hours. An Acorn 180 Curved Stairlift can be installed within days of an order, even next day.

Safety

The Acorn 180 Curved Stairlift has a range of built-in safety features for additional peace of mind.

  • GENTLE STOP/START
  • OBSTRUCTION SENSORS
  • 3-POINT SAFETY BELT

Features

Acorn’s Curved Stairlift is packed with a range of features designed to make it comfortable and a pleasure to use.

  • ERGONOMIC SEAT
  • EASY-TO-USE CONTROLS
  • FOLDAWAY DESIGN

GET A FREE PRICE QUOTE

Get in touch with a specialist to find out which stairlift is best for you!

SPECIFICATIONS

The Acorn 180 Curved Stairlift uses a discreet single rail and is designed to blend easily with your home’s décor. All materials used in its construction are designed to be durable and easy to clean. The maximum carrying capacity is 264lbs (18.8st).

  • SINGLE BLANK-FACED RAIL
  • SLIMLINE CARRIAGE DESIGN
  • INSTALLED WITHIN DAYS
stairlift outline
Dimensions inch
Overall height 38.5
Height of Seat 17.25
Overall depth (from wall) 22.5
Overall depth (when folded) 12.25
Width of footrest 12.25
Overall width 23.25
Depth of seat 16
Specifications
Motor output speed 120mm/s | 4.8inches per second - No greater than 0.15 meters per second
Method of drive Rack and pinion
Power supply 24V DC (battery)
Maximum capacity 280lbs/127kg
Track Extruded aluminium
Mains supply 50-60Hz, 100-240V AC
